Certificate Authority Overrides allow a cluster admin to override a Teleport CA's certificate with a distinct certificate, signed by an external authority. In practice that Teleport CA becomes a Sub CA of an external trust chain.

CA private key management remains within Teleport. Overridden certificates must target existing CA public keys, therefore CSRs for the overrides are generated by Teleport.

The resource used to managed CA overrides is the cert_authority_override.

Dev build limitations

danger

The CA override dev build must only be used in test environments. Do not use in production.

It's strongly recommended that any overrides created by the dev build are deleted before upgrading to the next release.

CA overrides are currently implemented only in a dev build based on v18.7.4 - v18.8.0-dev.codingllama.1.

As such, the build has certain limitations compared to what is planned for the full release. Namely:

• Only windows overrides are functional.

  • You may create db_client overrides, but they won't be used by Database Access.

• Commands that interact with CAs are not yet aware of overrides. For example:

  • tctl get cas/windows still returns the self-signed CA certificate. Use tctl get ca_overrides/windows to get override data.
  • CA rotation won't consider active overrides. The admin must be aware of active overrides and manually created new overrides, at the appropriate steps, in case of rotation.

• The build is generally more permissive with override creation and updates than the final release.

  • Overrides are not checked against current CA certificates. This includes the targeted public_key_hash and certificate timestamps.
  • Override disable protection is absent. Any override can be disabled or deleted, at any time.

• The following commands are not available:

  • tctl auth create-override
  • tctl auth update-override
  • tctl auth delete-override
  • (tctl create/get/rm can interact with overrides, plus tctl auth create-override-csr and tctl auth pub-key-hash do exist)

Prerequisites

1. Make sure the cluster is fully upgraded to the dev build.

Step 1. Prepare the override certificate CSR.

Prepare the CSR using tctl:

tctl auth create-override-csr --type=windows
Wrote windows-$ABRIDGED_HASH-csr.pem

You may print the CSR PEM to stdout:

tctl auth create-override-csr --type=windows --out='-'
-----BEGIN CERTIFICATE REQUEST-----(...)-----END CERTIFICATE REQUEST-----

You may also customize the certificate Subject:

tctl auth create-override-csr --type=windows --subject='O=Foo Org,OU=Foo Org Unit,CN=Foo Windows CA'

If a CA has multiple active or additional_trusted_keys, then a CSR is created for each key.

Step 1.1. Prepare CSRs for multi-Auth, HSM-enabled clusters.

In multi-Auth, HSM-enabled clusters tctl must be locally executed against each Auth instance, which generates CSRs for the keys that each Auth has access to.

For example:

Access the first Auth instance.
Modify the command below as appropriate.
tsh ssh user@Auth1
Generate the CSRs.
Modify as desired.
tctl auth create-override-csr --type=windows
Second Auth instance.
tsh ssh user@Auth2tctl auth create-override-csr --type=windows
So on.

When writing the override resource, make sure the final spec.certificate_overrides contains one entry for each certificate generated from those CSRs. See steps 4 and 4.1.

Step 2. Issue override certificates using your external authority.

Using the CSRs from step 1, issue the override certificates using your external authority.

The certificates must fulfill the following requirements:

• KeyUsage: keyCertSign and cRLSign
• BasicConstraintsValid: true
• IsCA: true
• Subject: the Teleport cluster name must be present in either the O field (first element) or in the OID 1.3.9999.4.1.
  • CSR from step 1 will specify a valid Subject.

Step 3. Configure downstream trust.

Using the certificates acquired in step 2, make sure to configure downstream trust before proceeding.

For example, if overriding the windows CA, make sure your Windows hosts trust the new certificates. Refer to the desktop access local or AD guides.

Step 4. Create the certificate overrides.

Using the certificates from step 2 and having configured downstream trust, you may now create the certificate overrides.

Take note of your cluster name:

$ tctl get cas/windows | yq '.spec.cluster_name'
mycluster

Prepare the ca_override_windows.yaml file. Modify it as indicated by the snippet.

kind: cert_authority_override
sub_kind: windows
version: v1
metadata:
  name: mycluster # REPLACE WITH YOUR ACTUAL CLUSTER NAME.
spec:
  certificate_overrides:
  - certificate: |-
      -----BEGIN CERTIFICATE-----
      REPLACE WITH THE OVERRIDE CERTIFICATE PEM
      -----END CERTIFICATE-----

Create the override:

tctl create ca_override_windows.yaml

tip

You may create a disabled override and later enable it:

kind: cert_authority_override
sub_kind: windows
version: v1
metadata:
  name: mycluster
spec:
  certificate_overrides:
  - certificate: |-
      -----BEGIN CERTIFICATE-----
      (...)
      -----END CERTIFICATE-----
    disabled: true # Edit and change to false to enable.

Step 4.1. Create certificate overrides on multi-Auth, HSM-enabled clusters.

In multi-Auth, HSM-enabled clusters each certificate_override entry must be added by the corresponding Auth server instance (ie, the Auth that has access to the relevant private key).

Start with an empty CA override, created by any Auth:

kind: cert_authority_override
sub_kind: windows
version: v1
metadata:
  name: mycluster # REPLACE WITH YOUR ACTUAL CLUSTER NAME.
spec: {}

tctl create ca_override_windows.yaml

Then, on each Auth instance, tctl edit the CA override and add the corresponding certificate_override stanza:

# Modify the command below as appropriate.
tsh ssh user@Auth1

tctl edit ca_overrides/windows

kind: cert_authority_override
sub_kind: windows
version: v1
metadata:
  name: mycluster
spec:
  certificate_overrides:
  - certificate: |-
      -----BEGIN CERTIFICATE-----
      ...
      -----END CERTIFICATE-----
# Add an entry for the new override, then close the edit window.
  - certificate: |-
      NEW OVERRIDE PEM HERE

In the release version the tctl auth create-override and tctl auth update-override commands will streamline this process.

Step 5. Exercise the CA override.

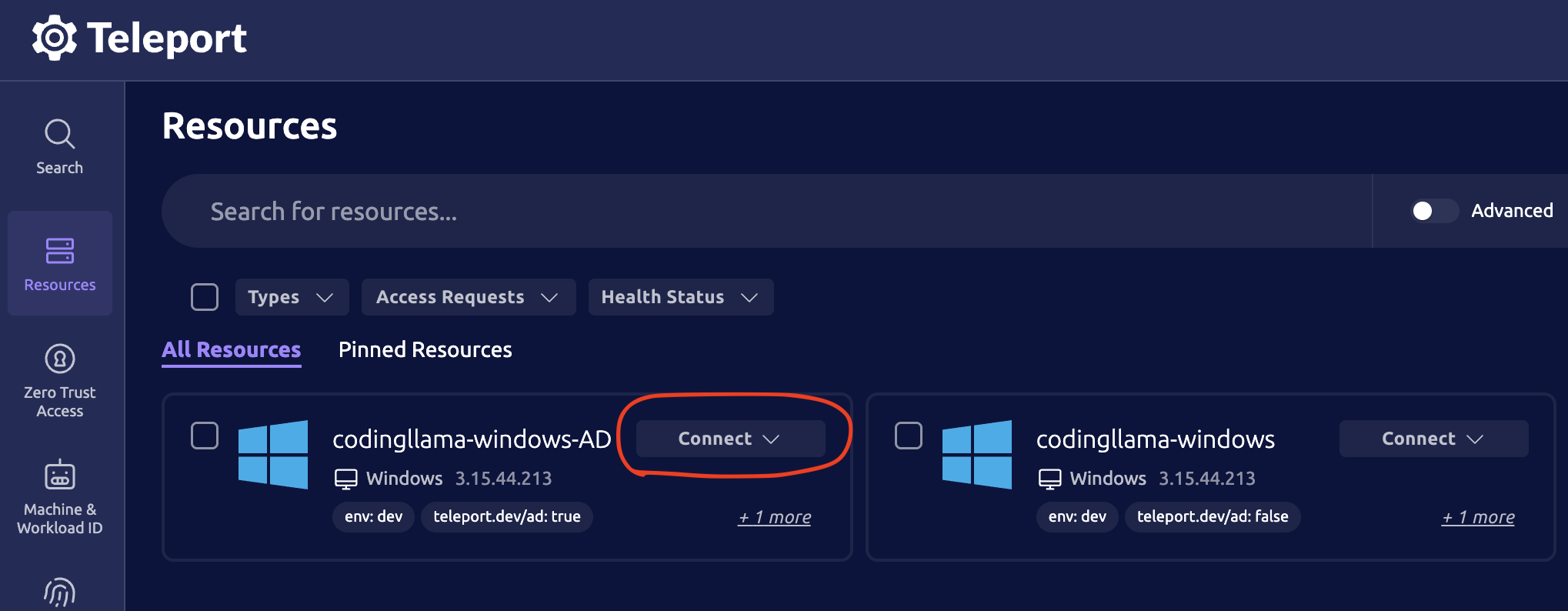

Assuming you created an override for the windows CA, exercise the override by starting a new Desktop Access session from your Teleport Proxy.

If downstream trust is configured correctly for the override certificate, then the session should start successfully.

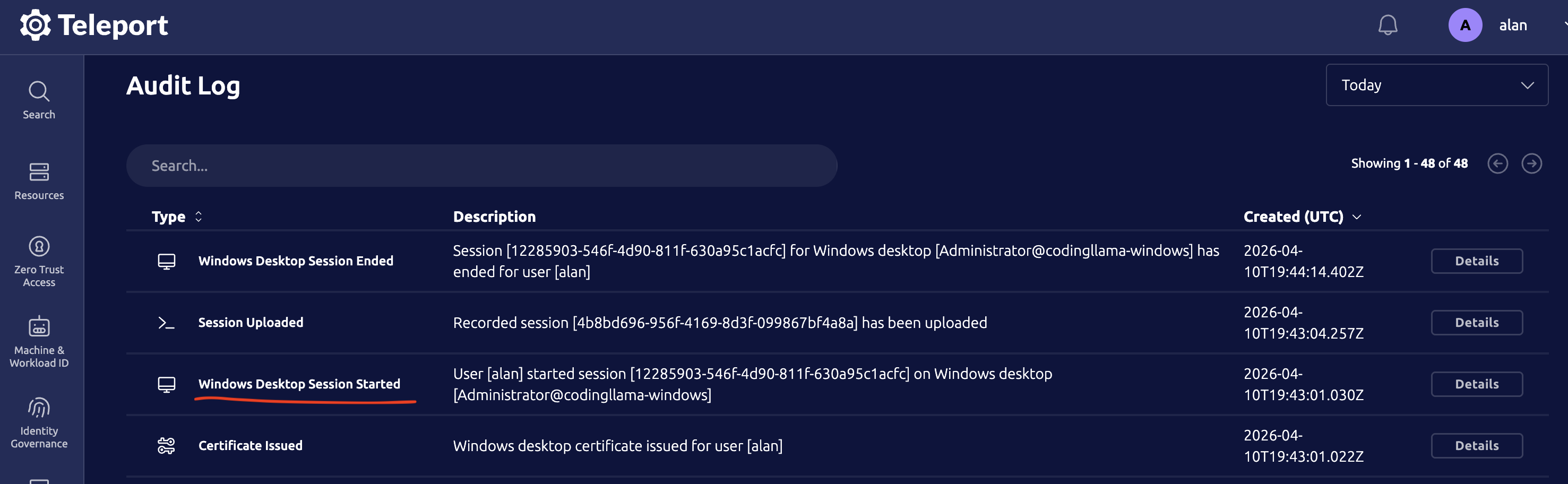

To confirm override use inspect the "Windows Desktop Session Started" event for the new session. You should see the "ca_override" stanza with "override_active: true" and a corresponding "public_key_hash".

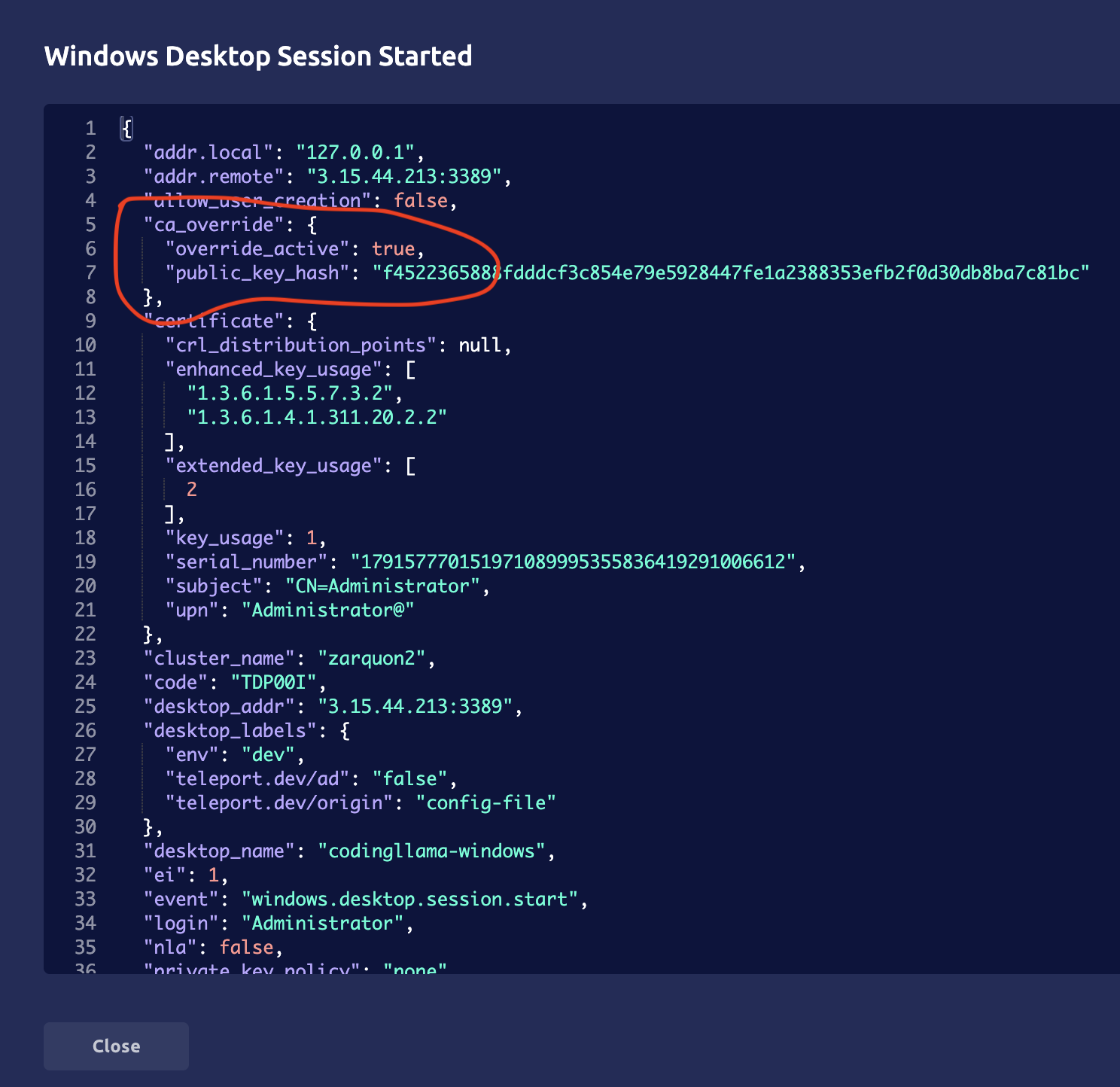

Windows Desktop Session Started example event

{
  "ca_override": {
    "override_active": true,
    "public_key_hash": "f4522365888fdddcf3c854e79e5928447fe1a2388353efb2f0d30db8ba7c81bc"
  },
  "certificate": {
    "crl_distribution_points": null,
    "enhanced_key_usage": [
      "1.3.6.1.5.5.7.3.2",
      "1.3.6.1.4.1.311.20.2.2"
    ],
    "extended_key_usage": [
      2
    ],
    "key_usage": 1,
    "serial_number": "179157770151971089995355836419291006612",
    "subject": "CN=Administrator",
    "upn": "Administrator@"
  },
  "cluster_name": "mycluster",
  "code": "TDP00I",
  "desktop_name": "codingllama-windows",
  "ei": 1,
  "event": "windows.desktop.session.start",
  "login": "Administrator",
  "success": true,
  "user": "alan",
  "windows_user": "Administrator"
# etc
}
